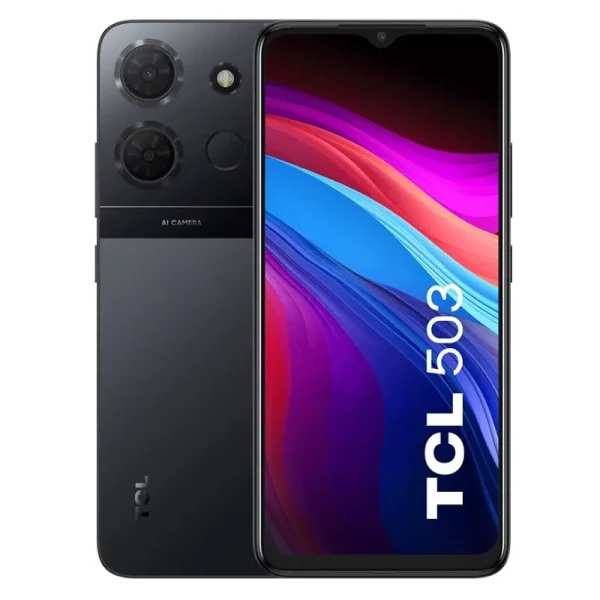

TCL 503
SPECS SCORE
Specification
General
| Device Type | Smartphone |
| Brand | TCL |
| Model | 503 |
| Status | Upcoming |
| Released | Exp. 20 October 2024 |
Hardware & Software
| Operating System | Android v14 |
| Chipset | Unisoc SC9863A |
| CPU | Octa-core (4x1.6 GHz Cortex-A55 & 4x1.2 GHz Cortex-A55)8 Cores |
| CPU Cores | 8 Cores |
| Architecture | 64 bit |
| Fabrication | 28 nm |
| GPU | PowerVR GE8322 |
Display
| Display Type | IPS LCD |
| Size | 6.6 inches (16.76 cm) |
| Resolution | 720x1612 px (HD+) |
| Aspect Ratio | 20:9 |
| Pixel Density | 267 ppi |
| Screen to Body Ratio | 84.6% |
| Display Protection | Gorilla Glass |
| Bezel-less Display | Yes with waterdrop notch |
| Touch Screen | Capacitive Touchscreen, Multi-touch |
| Brightness | 350 nits |
| Notch | Waterdrop |
Main Camera
| Camera Setup | Dual |
| Resolution | 8 MP, f/2.0, Wide Angle, Primary Camera, Auxiliary lens3264 x 2448 Pixels |
| Autofocus | Yes |
| Flash | LED Flash |
| Image Resolution | 3264 x 2448 Pixels |
| Settings | Exposure compensation, ISO control |
| Zoom | Digital Zoom |
| Shooting Modes | Continuous Shooting, High Dynamic Range mode (HDR) |
| Aperture | f/2.0 |
| Features | Auto Flash, Face detection, Touch to focus |
| Video Recording | 1920x1080 |
| Video FPS | 30 fps |
Selfie Camera
| Camera Setup | Single |
| Resolution | 5 MP, f/2.2, Wide Angle, Primary Camera |
| Video Recording | 1920x1080 |
| Video FPS | 30 fps |
| Aperture | f/2.2 |
Design
| Height | 163.9 mm |
| Width | 75.5 mm |
| Thickness | 8.9 mm |
| Weight | 185.5 grams |
| Build | Glass front, plastic back, plastic frame |
| Colors | Space Gray, Midnight Blue |
Battery
| Battery Type | Li-Poly (Lithium Polymer) |
| Capacity | 5000 mAh |
| Quick Charging | 10W wired |
| Placement | Non-removable |
| USB Type-C | USB Type-C 2.0 |
Storage
| Internal Storage | 64 GB |
| Storage Type | eMMC 5.1 |
| RAM (Memory) | 3 GBLPDDR4X |
| RAM Type | LPDDR4X |
| USB OTG Support | Yes |
Network & Connectivity
| Network | 2G, 3G, 4G |
| SIM Slot | Dual SIM, GSM+GSM |
| SIM Size | SIM1: Nano, SIM2: Nano |
| EDGE | |
| GPRS | |
| VoLTE | Yes |
| Speed | HSPA, LTE |
| WLAN | Wi-Fi 5 (802.11 a/b/g/n/ac) 5GHz |
| Bluetooth | v4.2 |
| GPS | Yes with A-GPS, Glonass |
| Wi-fi Hotspot | Yes |
| USB | Mass storage device, USB charging |
Sensors & security
| Light Sensor | Light sensor, Proximity sensor, Accelerometer, Compass, Gyroscope |
| Fingerprint Sensor | Yes |
| Fingerprint Sensor Position | Rear-mounted |
| Face Unlock | Yes |
Multimedia
| Loudspeaker | |
| Audio Jack | 3.5 mm |
| Video | 1080p@30fps |
More
| Made by | China |
| Features | Accelerometer, Virtual proximity sensing |
